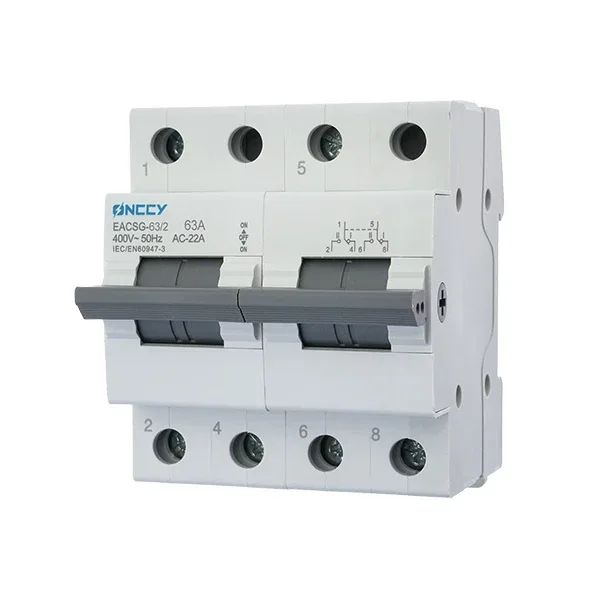

63A 415V 2P Changeover Switch

البيانات الفنية

Product Type

2P Changeover Switch

Rated Voltage

240/415V~

Rated Current

63A / 80A / 100A / 125A

Rated Frequency

50/60Hz

Number of Poles

2P

Contact Form

1-0-2

Electrical Life

1500 Cycles

Mechanical Life

8500 Cycles

Protection Degree

IP20

Ambient Temperature

-5°C to +40°C

Terminal/Cable Size

50mm²

Mounting

On DIN rail EN60715 (35mm) with fast clip device
