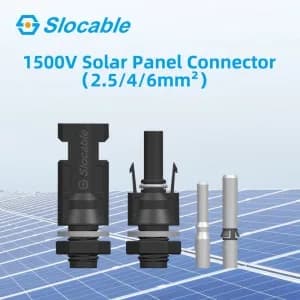

Slocable 1500V Solar PV Panel Connector

البيانات الفنية

Rated current

40A (Stamped Pin)50A (Lathed Pin)

Rated voltage

1500V DC

Test voltage

8kv(5Hz,1min)

Connector resistance

<0.35mΩ

Insulation materials

PPE/PC/PA

Terminal material

Copper,Tin plated

Temperature range

-40℃~85+℃ (IEC)

Degree of protection

IP2X/IP68

Flame class

UL94-V0

Safety class

Ⅱ

Insertion forcewithdrawal force

≤50N/≥50N

Connecting system

Crimp connection
