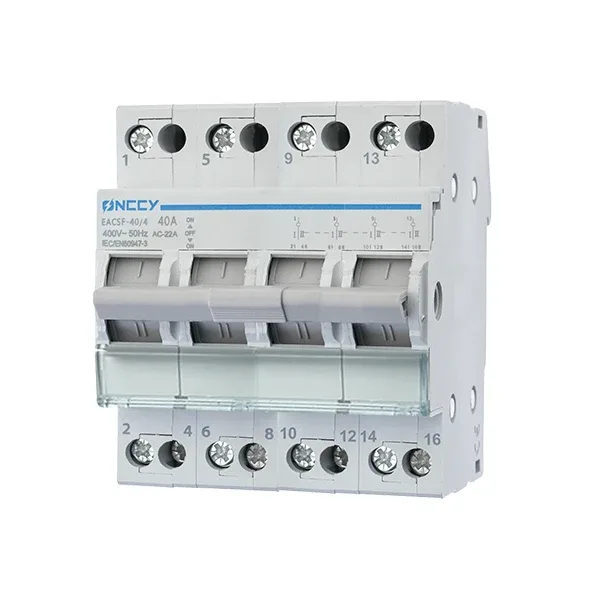

16A-40A 2P 3P 4P Changeover Switch with Wordboard

البيانات الفنية

Product Type

Changeover Switch

Rated Voltage

240/415V~

Rated Current

16A / 25A / 32A / 40A

Rated Frequency

50/60Hz

Number of Poles

1P / 2P / 3P / 4P

Contact Form

1-0-2

Electrical Life

1500 Cycles

Mechanical Life

8500 Cycles

Protection Degree

IP20

Ambient Temperature

-5°C to +40°C

Terminal/Cable Size

10mm²

Mounting

35mm DIN rail EN60715 with fast clip device
