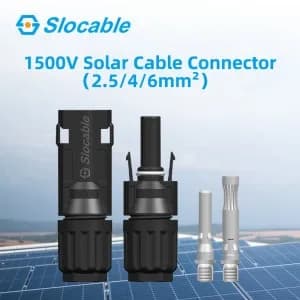

Slocable Copper Sheet Terminal Solar PV Connector TUV

البيانات الفنية

Insulation material

PPE、PA66

Rated current

50A(2.5mm2、4.0mm2、6.0mm2)

Rated voltage

1500V(TUV)

Test voltage

8kV(50Hz,1min)

Contact resistance

<0.5mΩ

Contact material

Copper, Tin plated

Degree of protection

IP2X/IP68

Safety class

Ⅱ

Flame class

UL94-V0

Insertion force

Max.50N

Withdrawal force

Min. 50N

Ambient temperature range

-40C...+85*C
