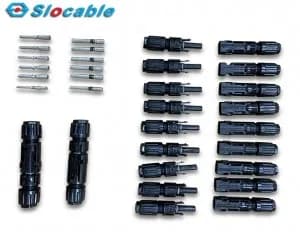

MC4 Solar Connector Male and Female

البيانات الفنية

Rated Current:

50A

Rated Voltage:

1000V/1500V DC

Certificate:

IEC62852 TUV , CE , ISO

Insulation Material:

PPO

Contact Material:

Copper, Tin plated

Waterproof Protection:

IP68

Contact Resistance:

<0.5mΩ

Ambient Temperature:

-40℃~+85℃

Flame Class :

UL94-V0

Suitable Cable :

2.5-6mm2 (14-10AWG)
