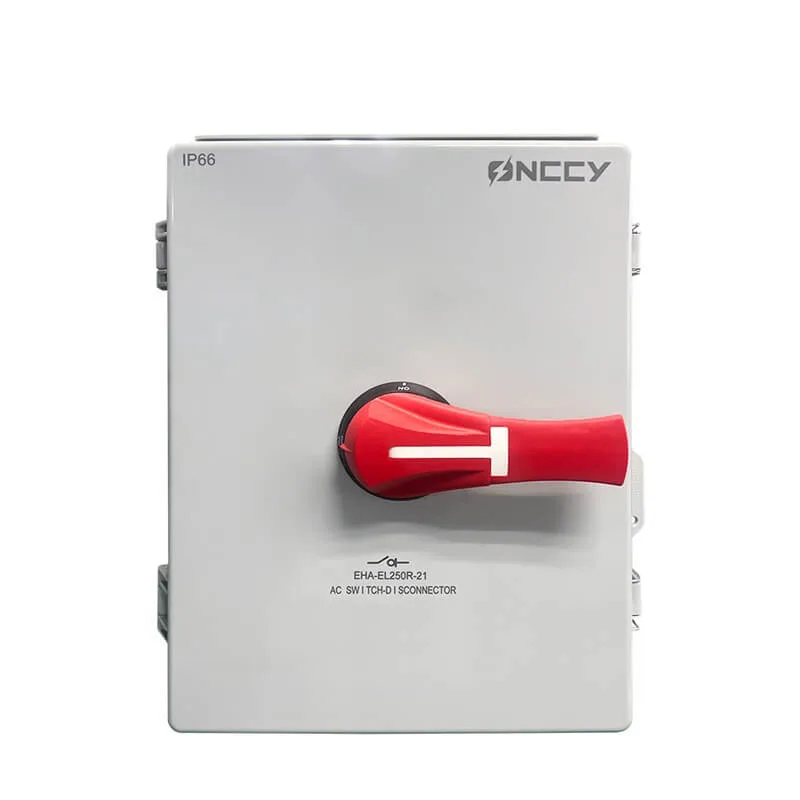

1000VAC 250A 3P IP66 Enclosure AC Load Break Switch

Technical Data

Rated Current (Ie)

160A

Frame Size

EHA-315

Thermal Current (Ith)

160

Rated Insulation Voltage (Ui)

1000

Rated Impulse Withstand Voltage (Uimp)

12

Utilization Category

AC-20A/AC-20BAC-21A/AC-21BAC-22A/AC-22BAC-23A/AC-23B

Rated Short Time Withstand Current (Icw 1s, kAeff)

8

Rated Short-Circuit Making Capacity (Icm, kA peak, 60ms)

22

Recommended Cu Rigid Cable Cross Section (mm²)

70

Recommended Cu Busbar Width (mm)

20

Durability (Number of Operating Cycles)

8000
