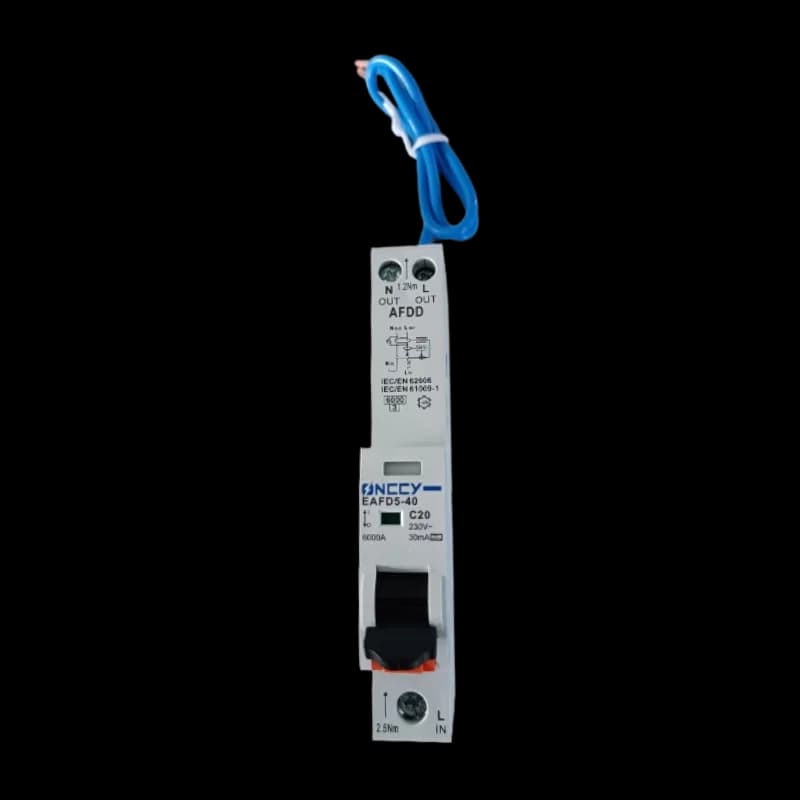

230V 40A 1P+N Arc Fault Protection RCBO+AFDD

Technical Data

Model

EAFD5-40

Type

AFDD + RCBO (1P+N)

Standards

IEC 62606, IEC 61009

Rated Voltage (Ue)

230 V AC

Insulation Voltage (Ui)

400 V

Rated Frequency

50 Hz

Rated Current (In)

6, 10, 16, 20, 25, 32, 40 A

Residual Current (IΔn)

30 mA (Type A)

Tripping Time at IΔn

≤ 0.1 s

Magnetic Tripping Curve

B or C

Overvoltage Trip Threshold

275 V AC ±5%

Rated Breaking Capacity

6,000 A
