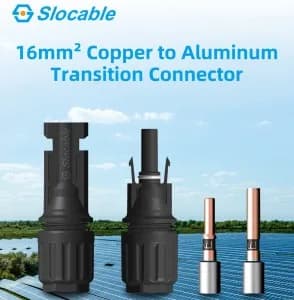

Copper Aluminum Transition Solar Connector 16mm² 1500V

Name: Copper Aluminum Transition Solar Connector 16mm² 1500V
Brand: slocable

Copper Aluminum Transition Solar Connector 16mm² 1500V. Key specifications — Insulation material: PPE PA66; Rated current: 70A; Rated voltage: 1500V; Test voltage: 8kV(50Hz,1min).

Get in touch View on manufacturer site

Specifications

Technical Data

Insulation material: PPE PA66
Rated current: 70A
Rated voltage: 1500V
Test voltage: 8kV(50Hz,1min)
Contact resistance: <0.5mΩ
Contact material: Copper, Aluminium, rod
Degree of protection: IP2X/IP67
Safety class: II
Flame class: UL94-V0
Insertion force: Max.50N
Withdrawal force: Min.50N
Ambient temperature range: -40"C...+85C

Related products

SLOCABLE

Slocable EN 50618 H1Z2Z2-K Solar PV DC Cable

View product

SLOCABLE

Slocable 14AWG-8AWG Solar Connector 2000V

View product

Suitable cable cross sections

16mm²（6AWG）

Connecting system

Crimp conntction

Order No.

Part P/N

Connector

Terminal

03-6(AL)

Male CN40-CMMM-H-D

Female CN40-CFPM-H-D

Female CN40-CA-FT6
