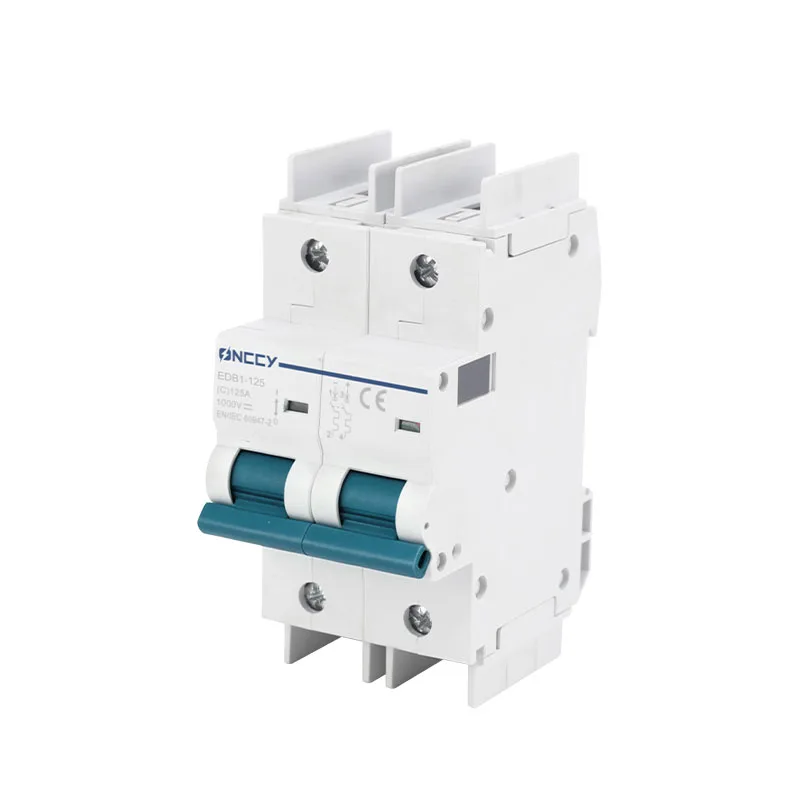

EDB1-125Z 1500V 250A High-Voltage DC Miniature Circuit Breaker

Technical Data

Brand

ONCCY

Product series

EDB1-125

Product type

High-voltage DC miniature circuit breaker

High-voltage version code

Z

Reference standard

IEC 60947-2

Number of poles

1P / 2P / 3P

Rated operating voltage (Ue)

1P: 500 V DC; 2P: 1000 V DC; 3P: 1500 V DC

Frame current

125 A

Rated current (In)

6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 A

Rated insulation voltage (Ui)

1500 V

Rated impulse withstand voltage (Uimp)

6 kV

Short-circuit breaking capacity
