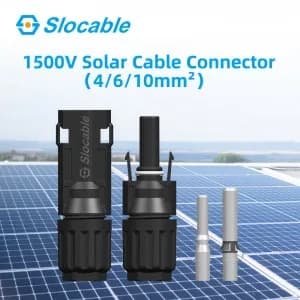

Slocable Multi-Contact Solar PV Connector 1500V (Copper Bar Terminal)

Technical Data

Insulation material

PPE, PA66

Rated current

50A (4mm², 6mm², 10mm²)

Rated voltage

1500V (TUV)

Test voltage

8kV (50Hz, 1min)

Contact resistance

< 0.5mΩ

Contact material

Copper, Tin plated

Degree of protection

IP2X / IP68

Safety class

II

Flame class

UL94-V0

Insertion force

Max. 50N

Withdrawal force

Min. 50N

Ambient temperature range

-40°C ... +85°C
